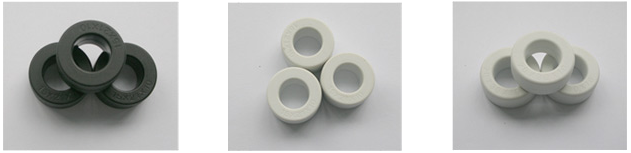

UT amorphous common mode magnetic core and inductance

Applications:1. noise suppression of the common mode
                 2. EMI harmonic filterring and a variety of EMC products

Characteristics of performance:1.Fewer numbers of turns but a higher inductance;
         2. Distribut low capacitance;
         3. High resonance frequency;
         4.Smaller size;
         5. Low temperature;
         6. Can be long-term used at higher operating temperature.

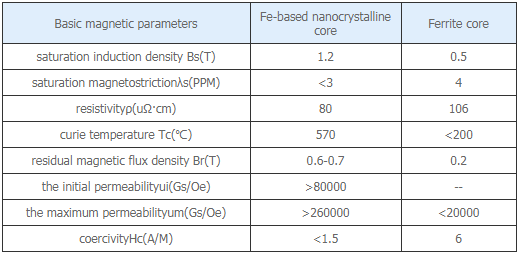

The performance comparison between Fe-based nanocrystalline and ferrite core:

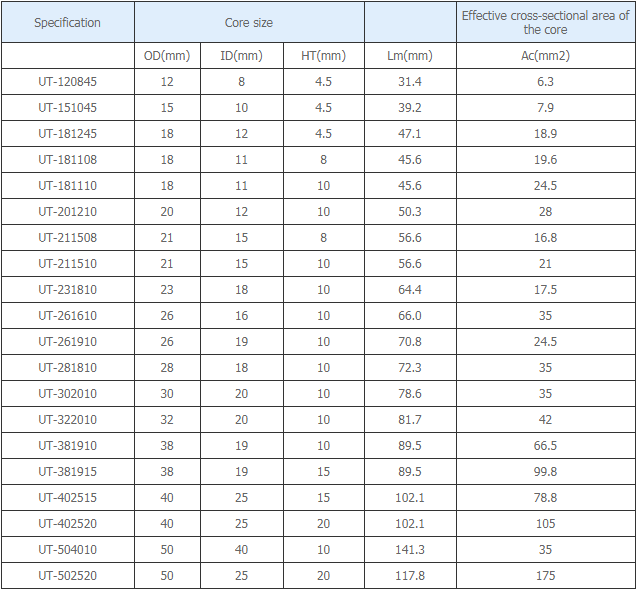

Standard Size List

Can design all kinds of special specifications of core according to customers’ needs
All cores can be supplied with a variety of coiling
The middle of the plastic shell of ferrite core has an active clapboard which can quarantine effectively and easy winding
The middle of the plastic shell of ferrite core has an active base which are convenient to produce products and plug in connector.
